20T PLC Control Ro Water Purification System

Ask Lasest Price
Brand Name :	Chunke
Model Number :	CK-RO
Certification :	CE,ISO
Payment Terms :	Cash,PayPal, T/T, L/C, Western Union
Supply Ability :	1000 unit per month
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

20T PLC Control Ro Water Purification System

20T PLC Control Ro Water System

RO Water treatment Equipment:

1, capacity: 500-50000LPH

2, material: 304 S.S

3, Conductivity≤20

Water treatment equipment is for producing drinking water, foods factory, beverage factory, fruit&vegetable factory etc. The machine is integrated into a group, the assembly and transportation are rather convenient.
It's simply operation and has long lifespan.
Main complonents: RO membrane(Hydecanme),
high pressure pump(South.China)
Electricity conduction meter
Over high or over low pressure protection failities
304 Stainless steel
Suitable for investment for mid-scale enterprises
The standard of supplied water
Electricity conduction rate: Nor more than 10us/cm
Bacter no.: Not more than 20

Function of each part of water treatment plant

1.Booster pump– provide the pressure to quartz sand filter/active carbon filter

2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.

3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.

4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.

5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um

6.High pressure pump– Provide the high pressure to RO membrane

7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions

8.UV sterilizer or ozone generator- kill bacteria

PRODUCT SPECIFICATIONS

Model	500LPH two stages	1000LPH two satages	2000LPH two stages	3000LPH two stages	4000LPH two stages	5000LPH two stages
Flow of produced water	0.3-0.7 (m/h)	0.5-1.2 (m/h)	1.7-2.2 (m/h)	2.8-3.2 (m/h)	3.8-4.2 (m/h)	4.5-5.2 (m/h)
Flow of concentrated water	0.10-0.2 (m/h)	0.10-0.3 (m/h)	0.2-0.4 (m/h)	0.3-0.5 (m/h)	0.4-0.6 (m/h)	0.4-0.6 (m/h)
Maximum working Pressure	0.4(MPa)	0.4(MPa)	0.4(MPa)	0.4(MPa)	0.4(MPa)	0.4(MPa)
Pressure difference between inlet and outlet	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)
pressure of concentrated water (Mpa)	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1
Maximum current(A)	3.5	3.5	3.5	3.5	3.5	3.5
Maximum Voltage(V)	200	340	340	340	340	340
Rate of Recovery	70-75%	75-80%	90-95%	90-95%	90-95%	90-95%
Working Temperature(C)	5-25	5-25	5-25	5-25	5-25	5-25

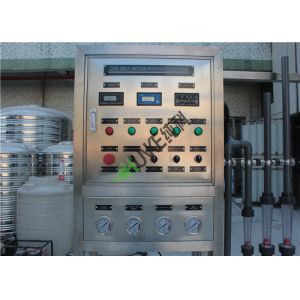

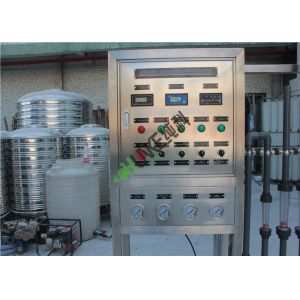

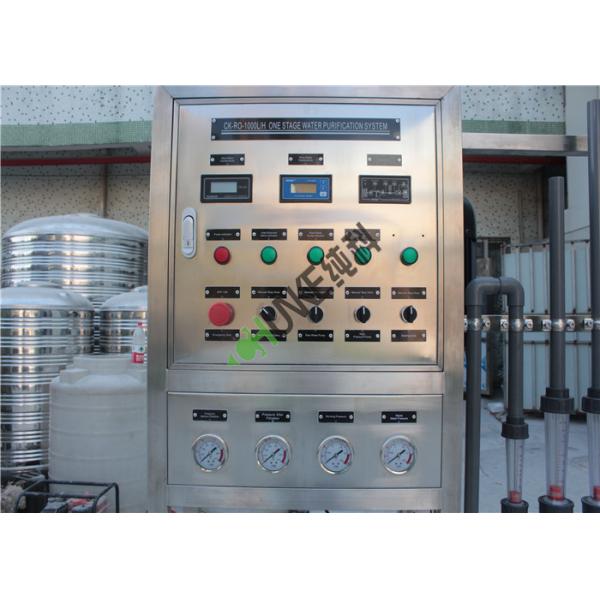

Detail Pictures :

20T PLC Control Ro Water Purification System
